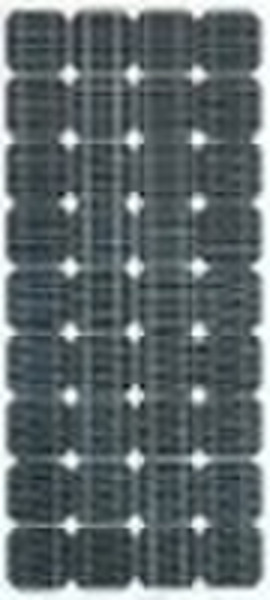

80W monocrystalline solar panel
Cathy Zhu
Contact person
Basic Information
| Model Number | WF80M-01F |
|---|---|
| Place of Origin | Jiangsu China (Mainland) |
| Brand Name | Wonderful Solar |
| Size | 1198mm*549mm*35/35mm |
| Number of Cells | 36 |
| Max. Power | 95w |
| Material | Monocrystalline Silicon |
Module typeUnit WF80M-01F Power rangeW 70-95 Open-circuit voltage (Voc) V 21.0121.3821.6321.7422 22.25Short-Circuit Current (Isc)A 4.674.925.175.485.72 5.98Max-power voltage (Vmp) V 16.817.117.317.417.6 17.8Max-power current (Imp)A 4.174.394.624.895.11 5.34Maximum power(Pmax)W 7075808590 95Cell Efficiency %13.514.5151617 17.75Number, Type and arrangement of Cell 36pcs Mono-crystalline silicon (4×9) Cell sizemm125×125Power temperature coefficient%/C-0.43Current temperature coefficient%/C0.02Voltage temperature coefficient%/C-0.34NOCT-Nominal operating cell temperature 45±2Operating temperature-40 +85Max-System VoltageVDC 715 Dimension 1198mm×549mm×35/35mmWeight 8kgCable Length 900mmBypass Diodes 2pcsJunction BoxTL-BOX010Front Glass3.2mmFrameAnodized aluminum alloy
