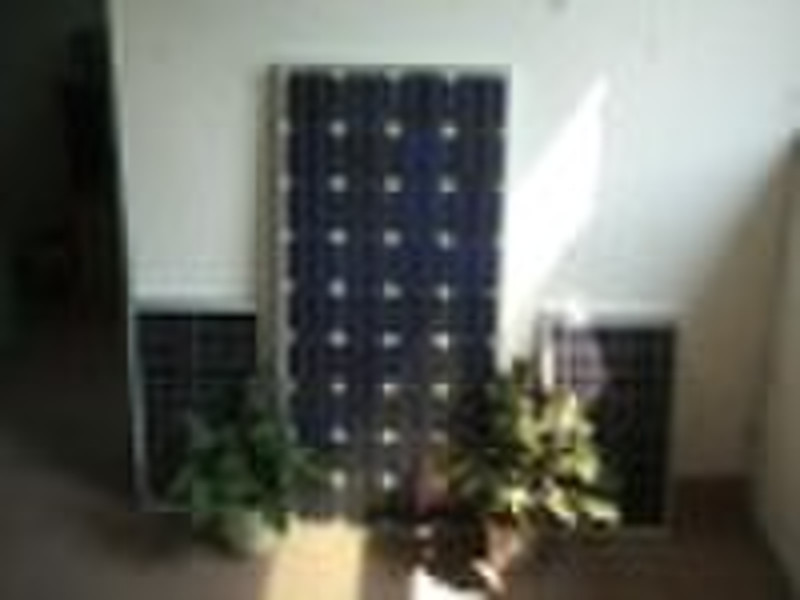

70-90w mono-crystalline solar panels
Cathy Zhu
Contact person
Basic Information
| Place of Origin | Jiangsu China (Mainland) |
|---|---|
| Brand Name | WFGF |
| Size | 1197*535*35 |
| Number of Cells | 36pcs |
| Max. Power | 90w |
| Material | Monocrystalline Silicon |
Specifications Mono-crystalline for 70-90w Tolerance +/- 3% Cell Monocrystalline silicon solar cells 125*125mm No. of cells 36(9*4) Dimension of Modules (mm) 1197*535*35 Weight 8KG Packing Configuration 2 pcs per carton Pallet Quantity 52pcs/pallet Loading 728 pcs/40ft; 350pcs/20ft Limits Operating Temperature -40 +85 Storage Temperature -40 +85 Maximum system voltage 1000 VDC max. Hail impact: diameter of 28mm with impact speed of 86km/h Temperature and Coefficients NOCT 48C +-2C Voltage temperature coefficient -0.34 Current temperature coefficient 0.09 Power temperature coefficient -0.37 Model WFM-70D WFM-80D WFM-90D Max-power voltage (Vmp) 17.2V 17.5V 18.2V Max-power current (Imp) 4.07A 4.57A 4.95A Open-circuit voltage (Voc) 20.81V 21.18V 22.02V Short-Circuit Current (Isc) 4.95A 5.4A 5.45A Max-power (Pm) 70W 80W 90W STC: Irrandiance 1000w/m2, Module temperature 25C, AM=1.5
