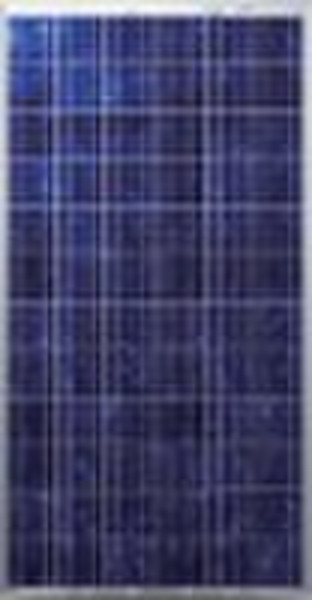

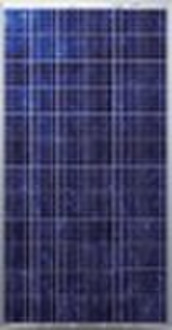

240-280W polycrystalline solar panel
Cathy Zhu
Contact person
Basic Information
| Place of Origin | Jiangsu China (Mainland) |
|---|---|
| Brand Name | WFGF |
| Model Number | WF280P-02A |
| Size | 1957mm*992mm*50mm |
| Number of Cells | 72 |
| Max. Power | 280W |
| Material | Polycrystalline Silicon |
Module type Unit WF280P-02A Power rangeW 235-290 Open-circuit voltage (Voc)V 43.1643.544.2544.8645.5Short-Circuit Current (Isc)A 7.798.058.228.428.6Max-power current (Imp)A 6.957.187.347.527.56Max-power voltage (Vmp)V 34.534.835.435.936.4Maximum power(Pmax)W 240250260270280Cell Efficiency %14.514.7515.2515.7517Number, Type and arrangement of Cell72pcs Mono-crystalline silicon (6×12) Cell sizemm156×156Power temperature coefficient%/-0.45Current temperature coefficient%/0.05Voltage temperature coefficient%/-0.35NOCT-Nominal operating cell temperature 45±2Operating temperature-40 +85Max-System VoltageVDC 1000 Dimension1957mm×992mm×50/50mmWeight26kgCable Length900mmBypass Diodes6pcsJunction BoxTL-BOX007BFront Glass3.2mmFrameAnodized aluminum alloy
