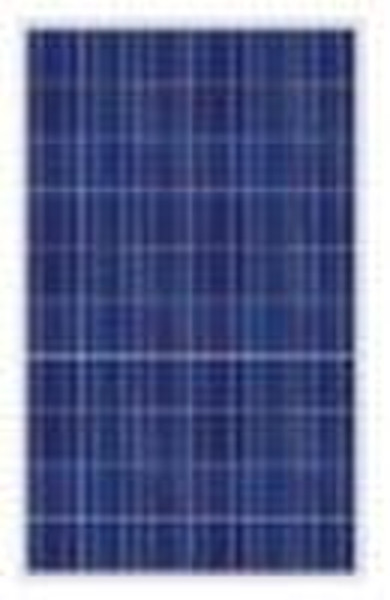

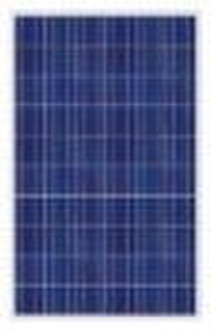

230watt polycrystalline solar panel
Cathy Zhu
Contact person
Basic Information
| Place of Origin | Jiangsu China (Mainland) |
|---|---|
| Model Number | WFM-230P |
| Size | 1650*990*40mm |
| Number of Cells | 60(10*6) |
Specifications Tolerance +/- 3% Cell Polycrystalline silicon solar cells 156*156mm No. of cells 60(10*6) Dimension of Modules (mm) 1650*990*40 Weight 21.5KG Packing Configuration 2 pcs per carton Pallet Quantity 36pcs/pallet Loading 504 pcs/40ft; 252pcs/20ft Limits Operating Temperature -4085 Storage Temperature -4085 Maximum system voltage 1000 VDC max.Temperature and Coefficients NOCT 48±2 Voltage temperature coefficient -0.34 Current temperature coefficient 0.05 Power temperature coefficient -0.45 Model WFM-230P Max-power voltage (Vmp) 30.0V Max-power current (Imp)7.66A Open-circuit voltage (Voc) 37.31V Short-Circuit Current (Isc)8.19A Max-power (Pm)230W STC: Irrandiance 1000w/m2, Module temperature 25 , AM=1.5
-
