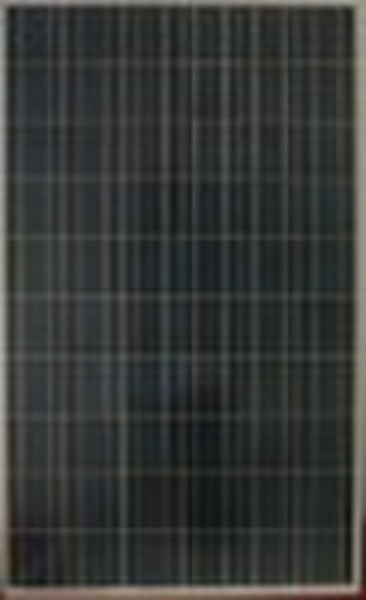

230W polycrystalline solar panel
Cathy Zhu
Contact person
Basic Information
| Place of Origin | Jiangsu China (Mainland) |
|---|---|
| Brand Name | WFGF |
| Model Number | WF220P-02B |
| Size | 1650mm*992mm*50mm |
| Number of Cells | 60 |
| Max. Power | 235W |
| Material | Polycrystalline Silicon |
Module type Unit WF220P-02B Power rangeW 200-235 Open-circuit voltage (Voc)V 36.3836.536.6336.7537.13Short-Circuit Current (Isc)A 7.78.058.218.388.67Max-power voltage (Vmp)V 29.129.229.329.429.7Max-power current (Imp)A 6.877.197.337.487.74Maximum power(Pmax)W 200210215220230Cell Efficiency %14.514.7515.2515.516.25Number, Type and arrangement of Cell60pcs Mono-crystalline silicon (6×10) Cell sizemm156×156Power temperature coefficient%/-0.45Current temperature coefficient%/0.05Voltage temperature coefficient%/-0.35NOCT-Nominal operating cell temperature 45±2Operating temperature-40 +85Max-System VoltageVDC 1000 Dimension1650mm×992mm×50/50mmWeight19kgCable Length900mmBypass Diodes6pcsJunction BoxTL-BOX007BFront Glass3.2mmFrameAnodized aluminum alloy
