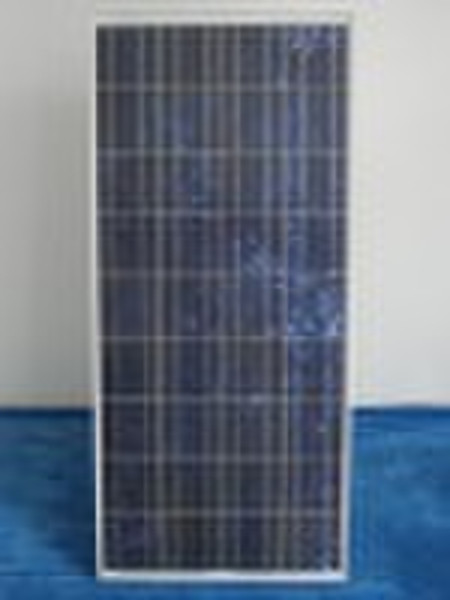

230w poly crystalline solar panels

Specifications Tolerance +/- 3% Cell Polycrystalline silicon solar cells 156*156mm No. of cells 60(10*6) Dimension of Modules (mm) 1650*990*40 Weight 21.5KG Packing Configuration 2 pcs per carton Pallet Quantity 36pcs/pallet Loading 504 pcs/40ft; 252pcs/20ft Limits Operating Temperature -40 +85 Storage Temperature -40 +85 Maximum system voltage 1000 VDC max. Temperature and Coefficients NOCT 48C +-2C Voltage temperature coefficient -0.34 Current temperature coefficient 0.05 Power temperature coefficient -0.45Model WFM-230P Max-power voltage (Vmp) 30V Max-power current (Imp)7.66A Open-circuit voltage (Voc)37.31V Short-Circuit Current (Isc) 8.19A Max-power (Pm) 230W STC: Irrandiance 1000w/m2, Module temperature 25C, AM=1.5
