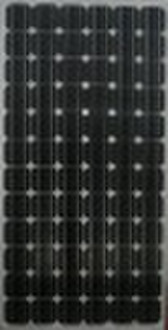

185W solar panel
Cathy Zhu
Contact person
Basic Information
| Place of Origin | China (Mainland) |
|---|---|
| Brand Name | WF |
| Model Number | WFM180W |
| Size | 1580*808*35 |
| Number of Cells | 72 |
| Max. Power | 185 |
| Material | Monocrystalline Silicon |
185W solar panel Specifications Tolerance +/- 3% Cell Monocrystalline silicon solar cells 125*125mm No. of cells 72(12*6) Dimension of Modules (mm) 1580*808*46 Weight 15.5 Packing Configuration 2 pcs per carton Pallet Quantity 52pcs/pallet Loading 728pcs/40ft; 350pcs/20ft Limits Operating Temperature -40 +85 Storage Temperature -40 +85 Maximum system voltage 1000 VDC max. Hail impact: diameter of 28mm with impact speed of 86km/h Temperature and Coefficients NOCT 48C +-2C Voltage temperature coefficient 0.09 Current temperature coefficient -0.34 Power temperature coefficient -0.37Characteristics: ModelWFM-185D Max-power voltage (Vmp) 36.2 Max-power current (Imp) 5.11 Open-circuit voltage (Voc) 44.8 Short-Circuit Current (Isc)5.51 Max-power (Pm) 185STC: Irrandiance 1000w/m2, Module temperature 25C, AM=1.5
-
