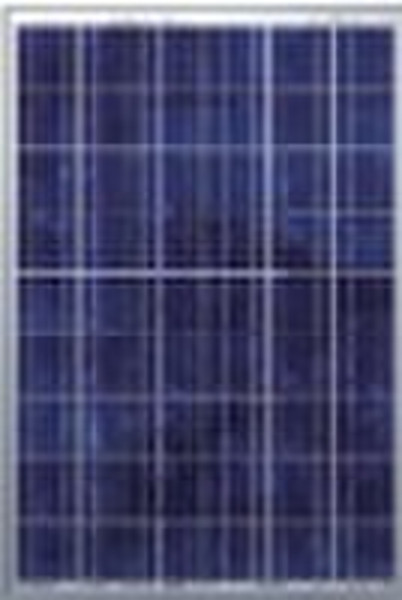

170w-215w Polycrystalline solar panel
Cathy Zhu
Contact person
Basic Information
| Place of Origin | Jiangsu China (Mainland) |
|---|---|
| Brand Name | WonderfulSolar |
| Model Number | WF190P-02C |
| Size | 1482mm*992mm*50/50mm |
| Number of Cells | 54 |
| Max. Power | 220w |
| Material | Polycrystalline Silicon |
Module type Unit WF190P-02C Power rangeW 170-215Open-circuit voltage (Voc) V 31.7532.2532.6332.8833.75Short-Circuit Current (Isc)A 7.57.818.158.528.95Max-power voltage (Vmp) V 25.425.826.126.326.9Max-power current (Imp)A 6.696.87.37.68Maximum power(Pmax)W 170180190200215Cell Efficiency %13.514.514.7515.516.75Number, Type and arrangement of Cell 54pcs Mono-crystalline silicon (6×9) Cell sizemm156×156Power temperature coefficient%/-0.45Current temperature coefficient%/0.05Voltage temperature coefficient%/-0.35NOCT-Nominal operating cell temperature 45±2Operating temperature-40 +85Max-System VoltageVDC 1000 Dimension 1482mm×992mm×50/50mmWeight 17kgCable Length 900mmBypass Diodes 6pcsJunction BoxTL-BOX007BFront Glass3.2mmFrame Anodized aluminum alloy
