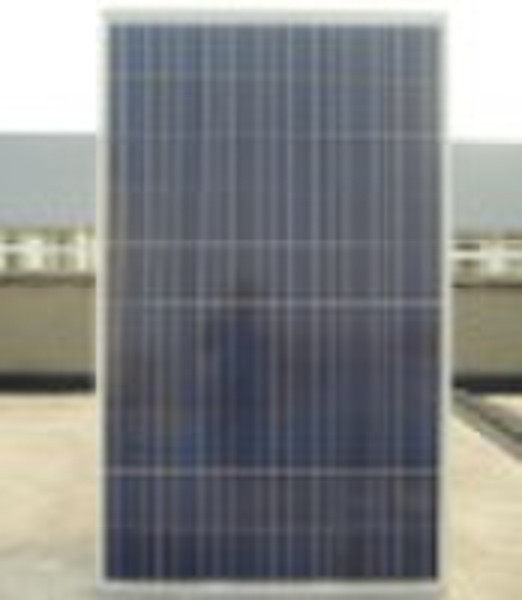

160-185w poly-crystalline solar modules
Cathy Zhu
Contact person
Basic Information
| Place of Origin | Jiangsu China (Mainland) |
|---|---|
| Brand Name | WFGF |
| Size | 1310*990*40 |
| Number of Cells | 48pcs |
| Max. Power | 185w |
| Material | Polycrystalline Silicon |
Specifications Poly-crystalline solar modules for 160w-185w Tolerance +/- 3% Cell Polycrystalline silicon solar cells 156*156mm No. of cells and connections 48(8*6) Dimension of Modules (mm) 1310*990*40 Weight 16.5KG Limits Operating Temperature -40 +85 Storage Temperature -40 +85 Maximum system voltage 1000 VDC max. Hail impact: diameter of 28mm with impact speed of 86km/h Temperature and Coefficients NOCT 48C +-2C Voltage temperature coefficient(%k) -0.35 Current temperature coefficient(%k) 0.05 Power temperature coefficient(%k) -0.45 Characteristics: Model DJM-160P DM-170P DJM-175P Max-power voltage Vmp(V) 23.2 23.3 23.5 Max-power current Imp(A) 6.9 7.3 7.45 Open-circuit voltage Voc(V) 28.3 28.43 28.67 Short-Circuit Current Isc(A) 8.19 8.42 8.84 Max-power Pm(W) 160 170 175Model DJM-180P DM-185P Max-power voltage Vmp(V) 23.5 23.7 Max-power current Imp(A) 7.66 7.81 Open-circuit voltage Voc(V) 28.67 28.91 Short-Circuit Current Isc(A) 8.6 8.65 Max-power Pm(W) 180 185 STC: Irrandiance 1000w/m2, Module temperature 25C, AM=1.5
