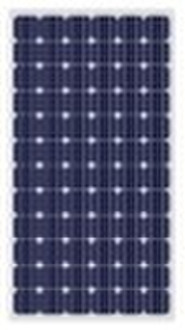

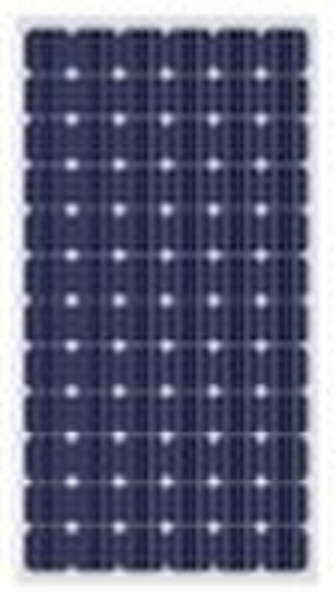

100w-140w poly-crystalline solar modules
Cathy Zhu
Contact person
Basic Information
| Place of Origin | Jiangsu China (Mainland) |
|---|---|
| Brand Name | WFGF |
| Size | 1473*664*35 |
| Number of Cells | 36pcs |
| Max. Power | 140w |
| Material | Polycrystalline Silicon |
Specifications Poly-crystalline solar modules for 100w-140w Tolerance +/- 3% Cell Polycrystalline silicon solar cells 156*156mm No. of cells and connections 36(9*4) Dimension of Modules (mm) 1473*664*35 Weight 12.5KG Limits Operating Temperature -40 +85 Storage Temperature -40 +85 Maximum system voltage 1000 VDC max. Hail impact: diameter of 28mm with impact speed of 86km/h Temperature and Coefficients NOCT 48C +-2C Voltage temperature coefficient(%k) -0.35 Current temperature coefficient(%k) 0.05 Power temperature coefficient(%k) -0.45 Characteristics: Model DJM-100P DM-110P DJM-120P Max-power voltage Vmp(V) 17 17.1 17.2 Max-power current Imp(A) 5.88 6.43 6.98 Open-circuit voltage Voc(V) 20.66 20.78 20.9 Short-Circuit Current Isc(A) 7.68 8.15 8.32 Max-power Pm(W) 100 110 120 Model DJM-130P DM-140P Max-power voltage Vmp(V) 17.4 17.8 Max-power current Imp(A) 7.47 7.87 Open-circuit voltage Voc(V) 21.14 21.63 Short-Circuit Current Isc(A) 8.78 8.75 Max-power Pm(W) 130 140 STC: Irrandiance 1000w/m2, Module temperature 25C, AM=1.5
